Description
FRAME
eONE-SIXTY SL CF4 I
material: carbon
160mm suspension travel
29×2,4″ max. wheelsize
148x12mm axle standard
fixed battery
FORK
Rock Shox Lyric Select+ eMTB
Air
160mm suspension travel: Tapered
44mm fork offset
29×2.6″ max wheelsize
SHOCK
Rock Shox Super Deluxe Select+
platform
BRAKES
Sram Maven Base
4 piston
ROTORS
Sram HS2
200mm
HEADSET
Acros ICR MERIDA INTEGRATED neck w/ Blocklock
HANDLEBAR
MERIDA EXPERT eTR
780mm width
HANDLEBAR STEM
MERIDA EXPERT eTR II
material: aluminium
35mm diameter
0° stem angle
Supernova mount
40 mm all sizes
GRIPS
MERIDA EXPERT EC

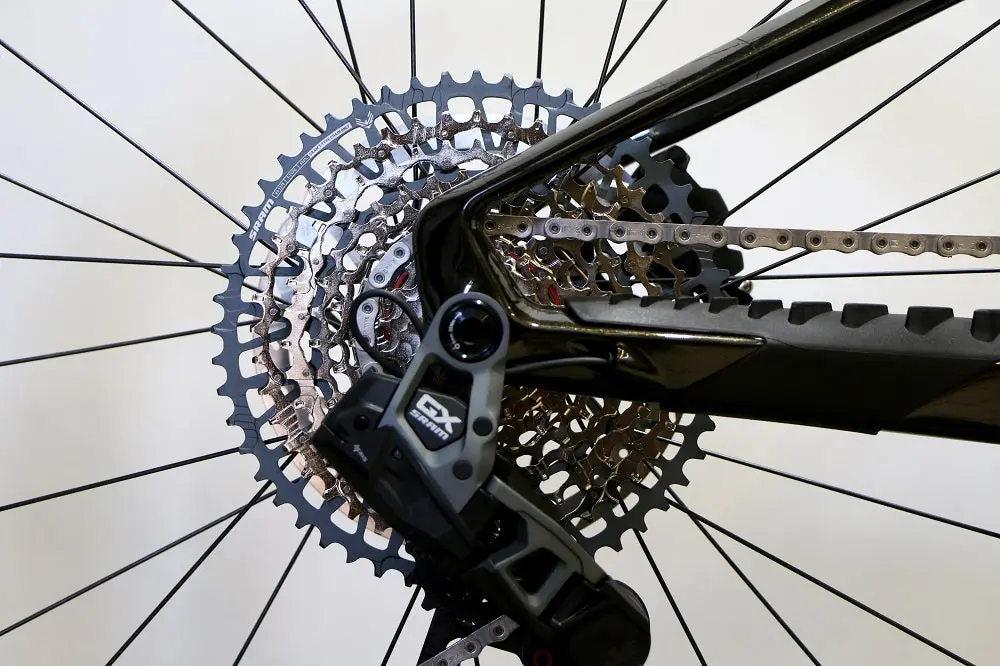

DERAILLEUR (R)
Sram GX Eagle Transmission AXS
SHIFTERS
Sram dropper lever MMX / Sram AXS Pod Controller
SEAT POST
MERIDA COMP TR III
34.9mm diameter
0mm setback *
SEAT CLAMP
MERIDA EXPERT
SADDLE
Proxim Nembo
V-mount adapter
incl. MERIDA minitool
CHAIN
Sram GX Eagle Transmission
Flattop
CHAINWHEEL
Sram XX Eagle Transmission E-MTB for BOSCH
34 teeth

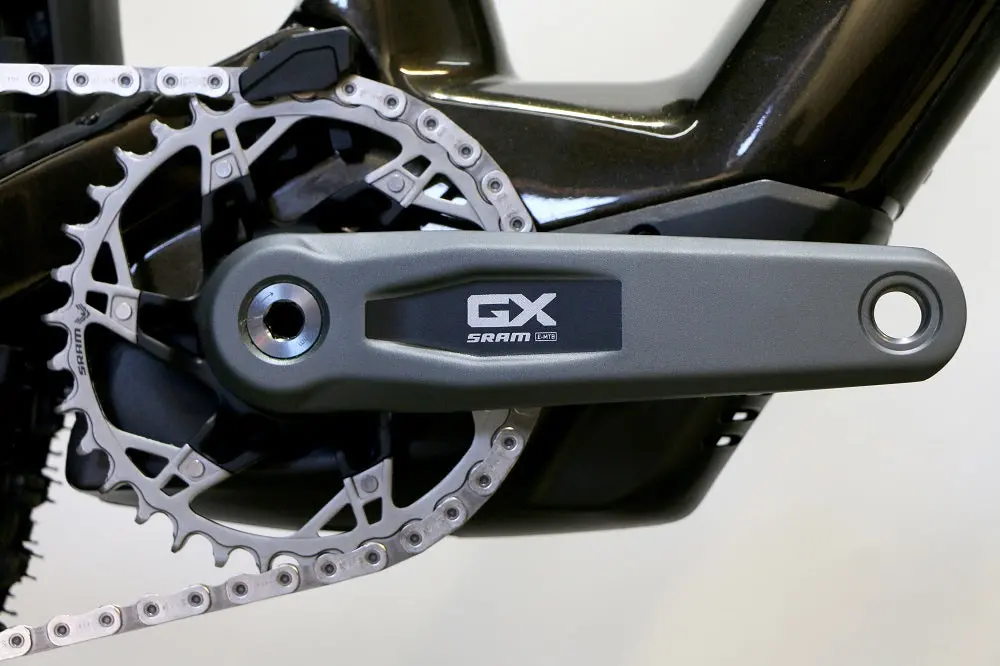

CRANK
Sram GX Eagle E-MTB Crank
165 mm for all sizes
FREEWHEEL
Sram XS-1275 T-TYPE
10-52 teeth
12 speed
WHEELSET
DT Swiss HX 1700
110x15mm width front hub
148x12mm width rear hub
30mm inner width
6-Bolt
SRAM XD
material: aluminium
Tubeless ready (tubeless tape and valves included)
TYRE FRONT
Maxxis Assegai
29×2.5 “
fold
TR EXO+ 3C MaxxGrip
TYRE REAR
Maxxis Minion DHR II
29×2.4 “
fold
TR EXO+ 3C MaxxTerra
AXLES
MERIDA EXPERT TR
including removeable lever, 6/4mm allen key
LIGHT FRONT
USB rechargable Chance Good CG-119PG-BLACK(1)
LIGHT REAR
USB rechargable Chance Good CG-404RG-BLK
FENDER
RF-001 mini fender
DRIVE UNIT
Bosch Performance Line SX
BATTERY
Bosch CompactTube
400Wh
DISPLAY
Bosch Kiox 400C
APPROX. WEIGHT
20.5 kg
MAX. WEIGHT
140 kg
