Description

New Hybrid – Updated Tri-Optic Design

Take Command of the Night with Wider Coverage and Further Distance

Reaching wider and further, the Hybrid features a new Tri-Optic, multi-pattern reflector design that achieves superior visibility with leading optic efficiency. An evolutionary step in design that boasts a wider flood angle for the widest tracks and further distance on long high ways.

Tri Optical Beam Pattern

• 5° Hyperspot – Distance
• Combo – Centre Spread Flood
• Scene – Ultra Wide Flood

Built for tough conditions and made to last, the Hybrid series benefits from a renowned Altiq 10 Year Warranty which is made possible by utilising the highest quality components from world-leading brands such as General Electric, DuPont, Vishay, Osram and more!

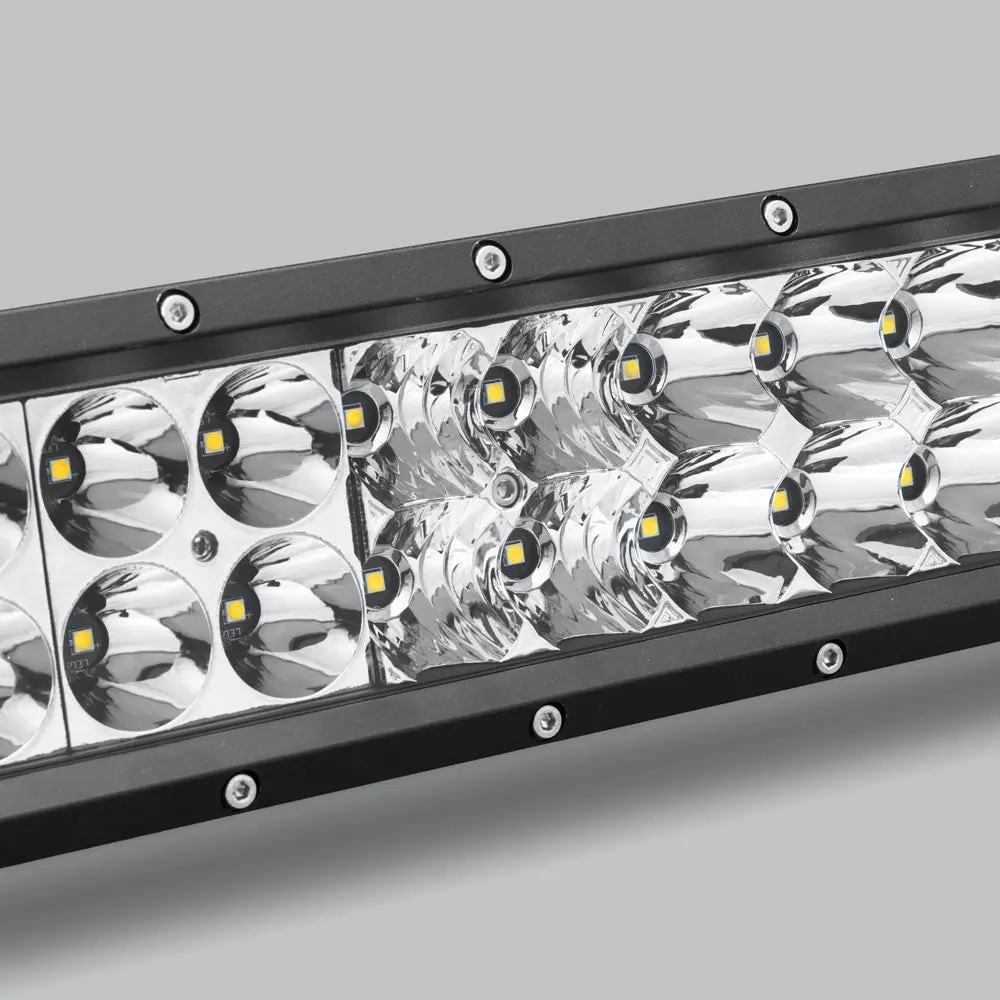

4 x Scene Reflectors – Ultra Wide Flood Output

5° Hyper spot + wide spread flood parabolic reflectors – Seamless flood to Spot Output

Side and Undermounts Included – Mount Anywhere

IP69K Waterproof – Highest Dust & Waterproof Rating – Pressure wash safe.

General Electric Lexan lens – Near Indestructible lens that stays clear as intended and does not haze over or yellow. No protective covers needed.

DuPont black paint – Black that stays black – highest chip resistant coating.

Gore-Tex breather valve – 100% pressure equalisation and moisture venting.

Marine Grade 316 Stainless bracket – more rigid and durable

CISPR 25 Class 3 Certified – Zero Radio/communication interference.

5700 Kelvin colour temperature – Daylight equivalent for low eye strain.

Fast Fit Wiring Harness – Easy plug and play  installation.

10 Year Warranty – No strings, our Light Bars are made to last!

Specifications

LUX DISTANCE	1 LUX @ 1118M
LUMENS	24750
LENS	GE Lexan Lens 3mm – Indestructible
LEDs	100 X Genuine 5W OSRAM P9 Chips
FINISH	DuPont Midnight Paint
FASTENERS	316L Marine Stainless
WATERPROOF RATING	IP68 – IP69K
WARRANTY	10 Years
INPUT VOLTAGE	10-30V DC
CURRENT DRAW	19.5A @12V
INCLUDED WIRING HARNESS	14 Gauge Dual DT Output, Negative and Positive switched headlight compatible
COLOUR TEMPERATURE	5700K @ 82+ CRI
WEIGHT	3.76KG (including brackets)
