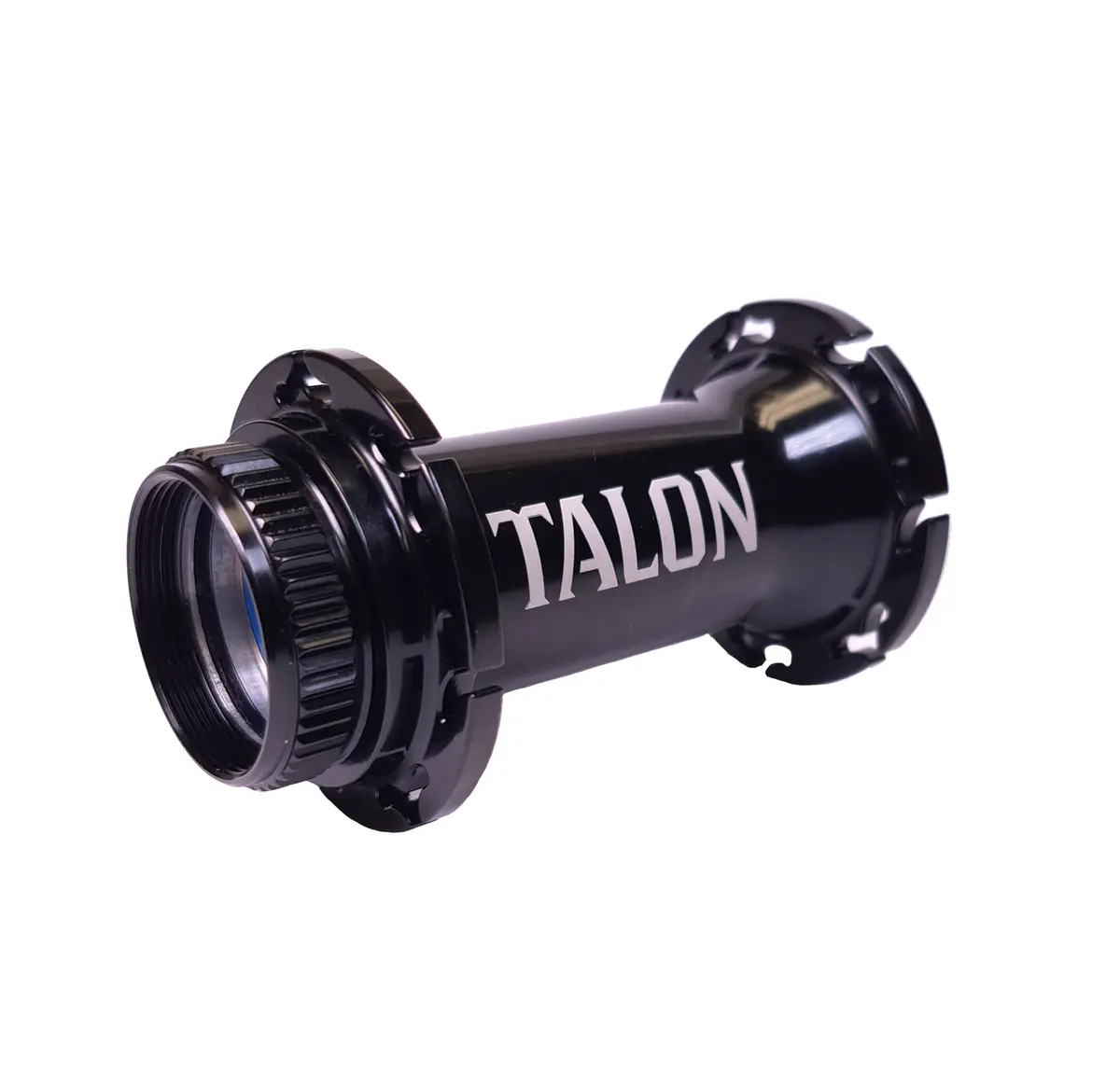

Introducing the Berd TALON Hubs!
The new TALON hubs were developed by Berd without compromise to create the highest-performing and most durable hubs using the hook flange interface, designed specifically for use with Berd spokes. The TALON hubs are now available in boost spacing for mountain bikes with a dual-sprung ratchet freehub.

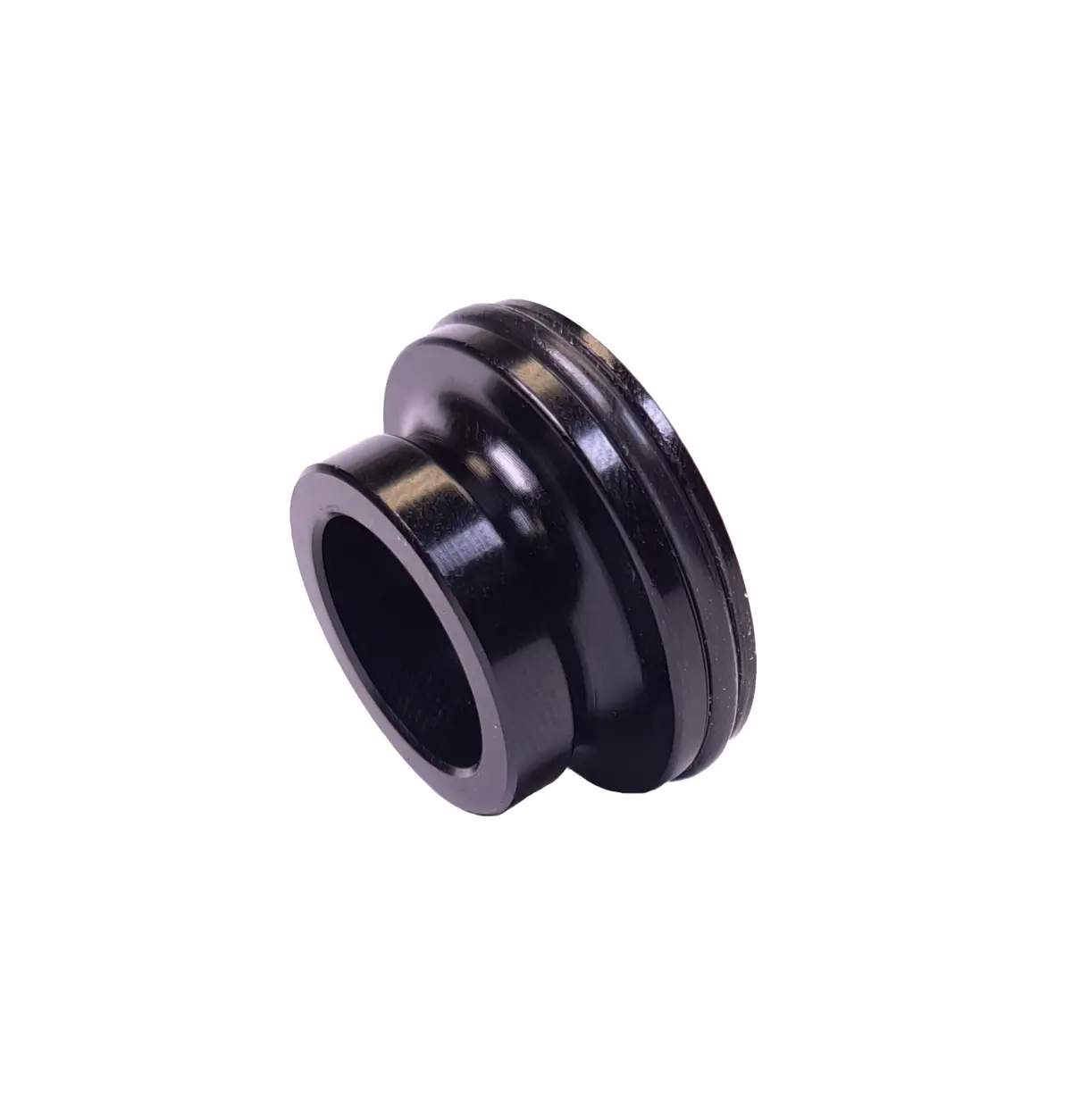

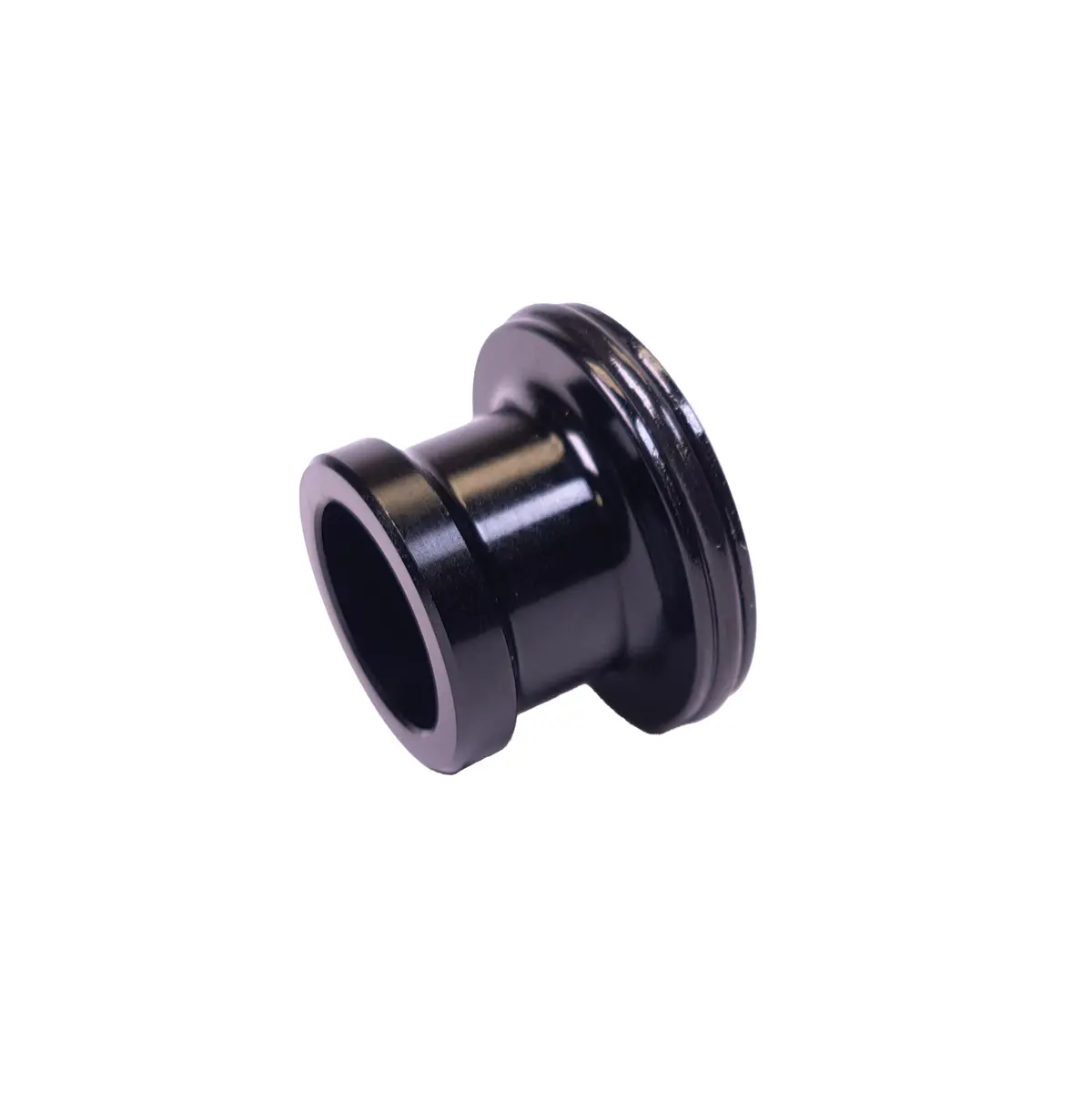

The Berd TALON hubs feature a proprietary Hook Flange for quick lacing and a clean spoke interface with no additional hub preparation needed. The TALON hubs also include removable end caps for easy serviceability, centerlock brake mounts, and a durable black anodized finish. The dual-sprung 36 tooth ratchet mechanism is designed to be easy to service and offers excellent reliability, with the ability to upgrade to a 54 tooth mechanism for quicker engagement.
Technical Specifications:
| Front Hub Weight: | 156 g |
| Rear Hub Weight: | 306 g (XD); 308 g (Microspline); 316 g (HG) |
| Hub Dimensions: | Boost 15 x 110 Front, Boost 12 x 148 Rear |
| Spoke Count: | 28 (front & rear) |

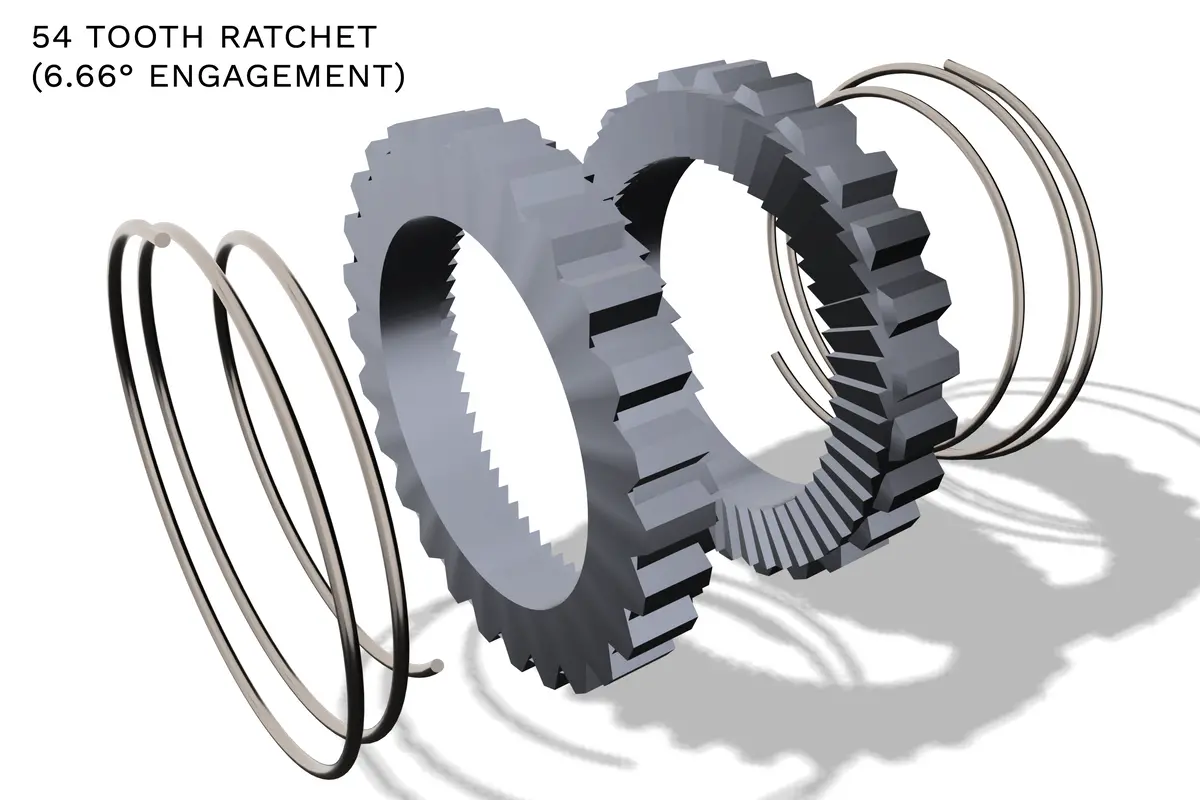

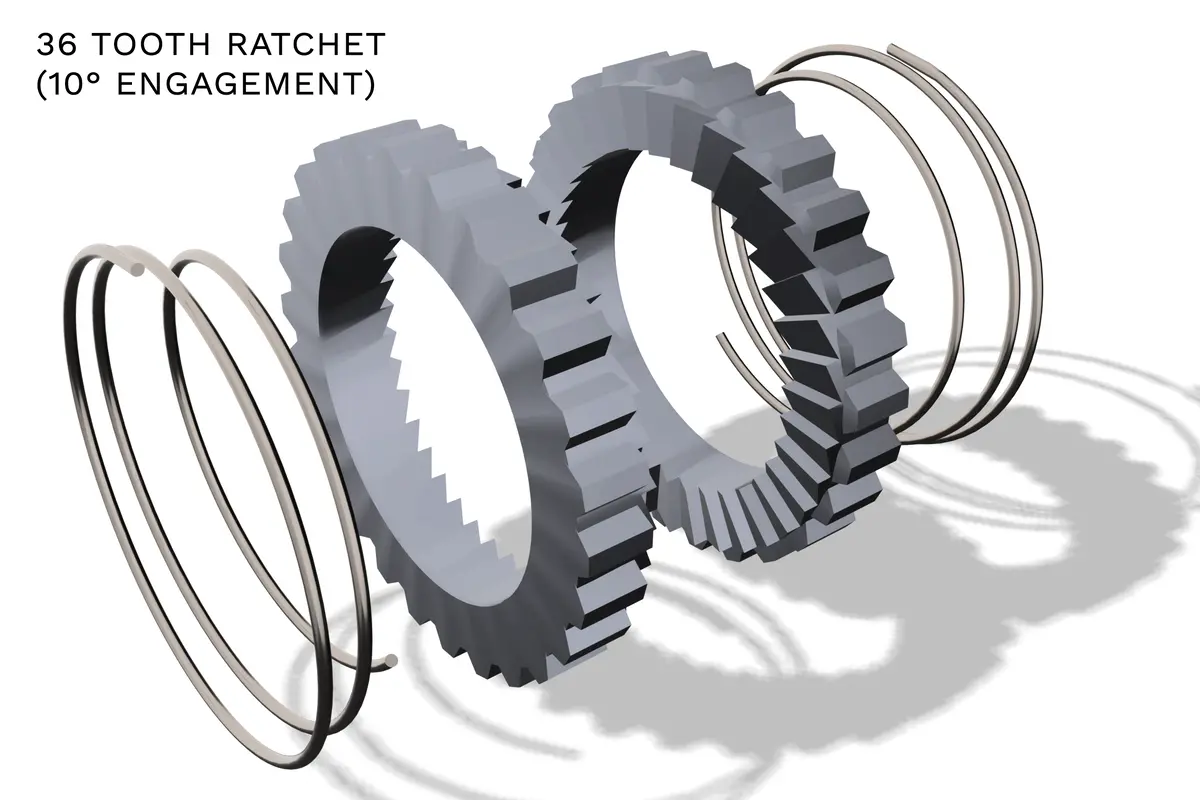

| Freehub Mechanism: | Dual-sprung 36 Tooth Ratchet Mechanism, upgradeable to 54 Tooth |
| Disc Brake Type: | Centerlock |
| Front Hub Dimensions: | Pitch Circle: 44 mm (left), 44 mm (right) Center to Flange: 28 mm (left), 40 mm (right) |
| Rear Hub Dimensions: | Pitch Circle: 60 mm (left), 64 mm (right) Center to Flange: 41 mm (left), 22 mm (right) |
| Spoke Lengths: | Use the Berd Spoke Calculator with “Berd Hook Flange” button selected and hub dimensions above |

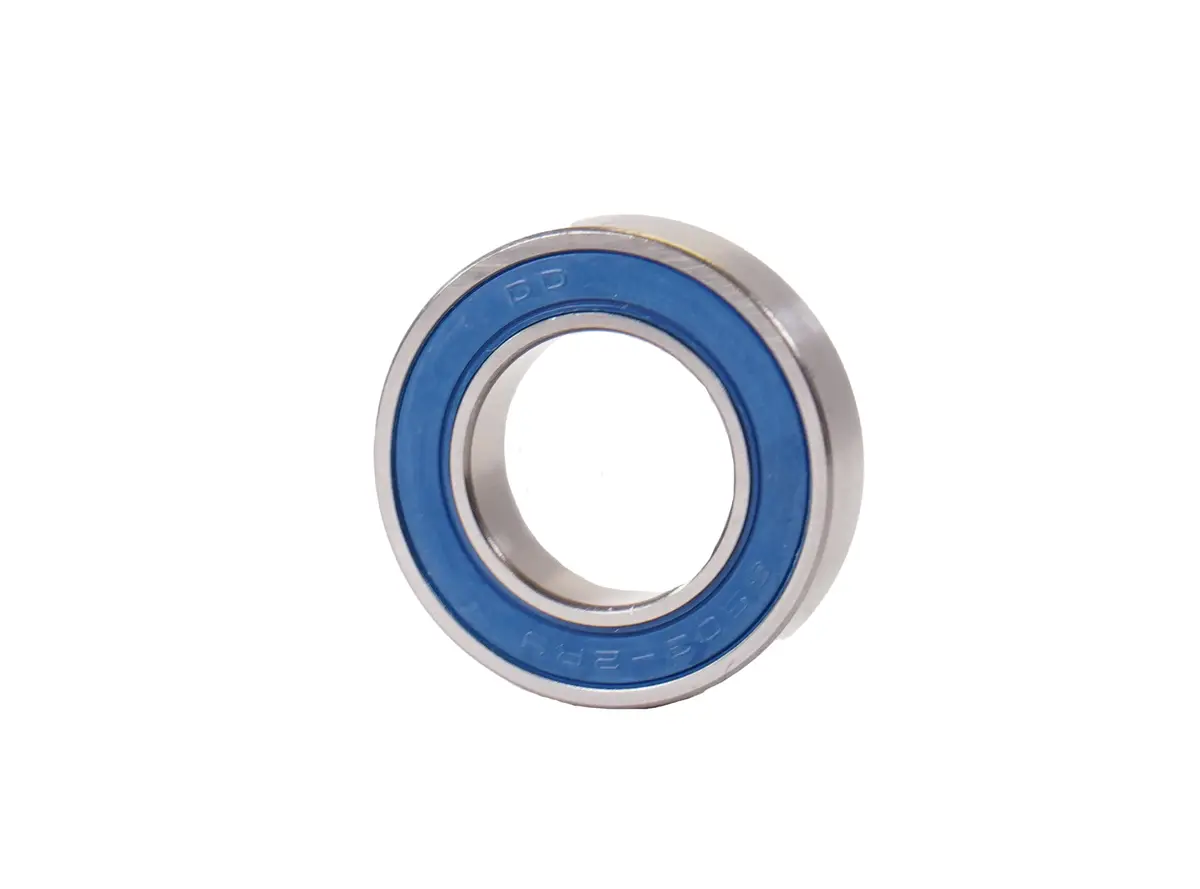

Bearing Information:
| Front Hub Bearings | Left Side: Right Side: |
6902 6902 |
| Rear Hub Bearings | Left Side: Right Side: |
6902 6903 |

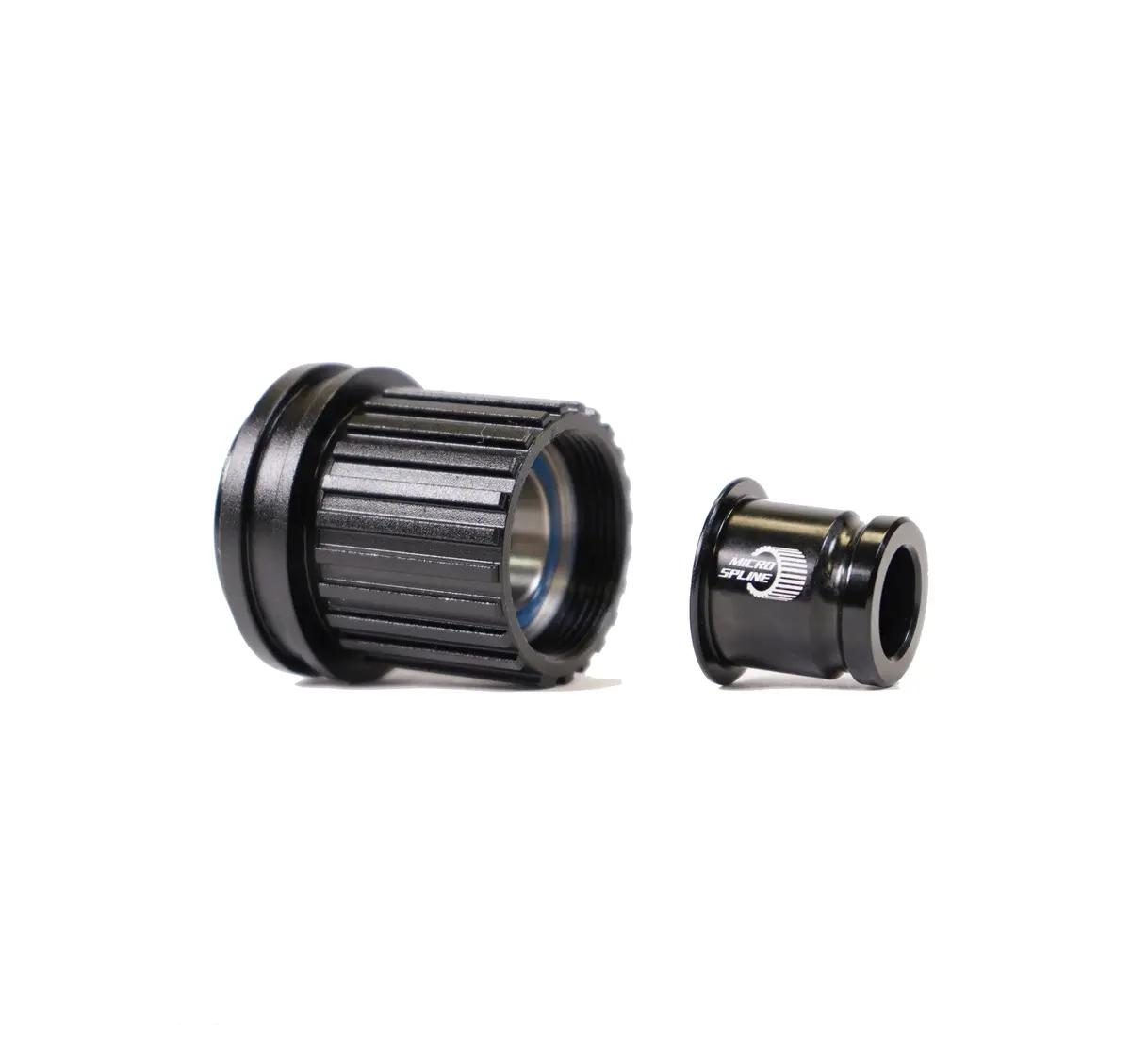

| Microspline Freehub Bearings: | Outboard: Inboard: |
6802 15248 |

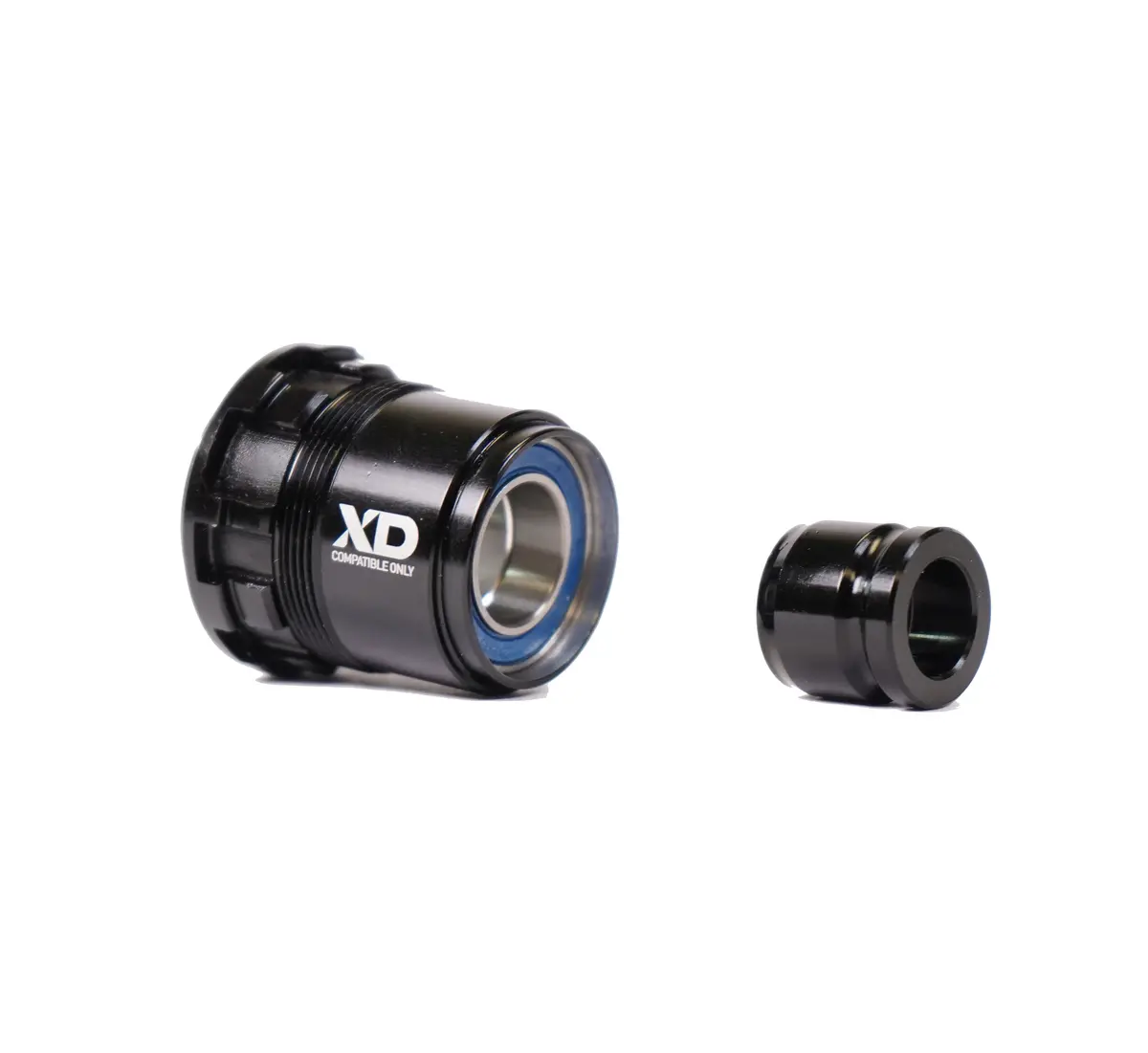

| SRAM XD Freehub Bearings: | Outboard: Inboard: |
15267 15248 |

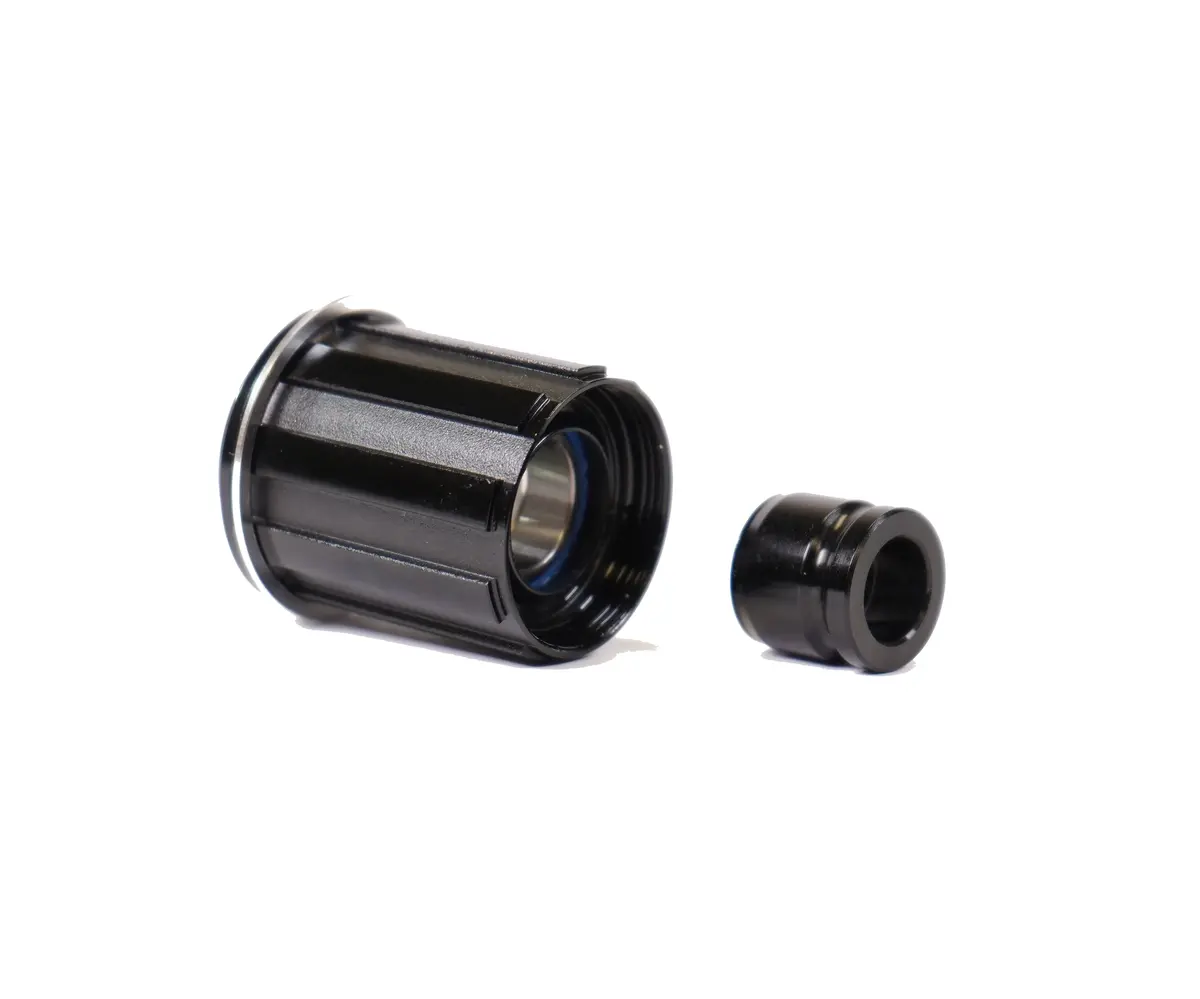

| Shimano HG Freehub Bearings: | Outboard: Inboard: |
6902 6902 |
TALON Warranty & Service Manual
