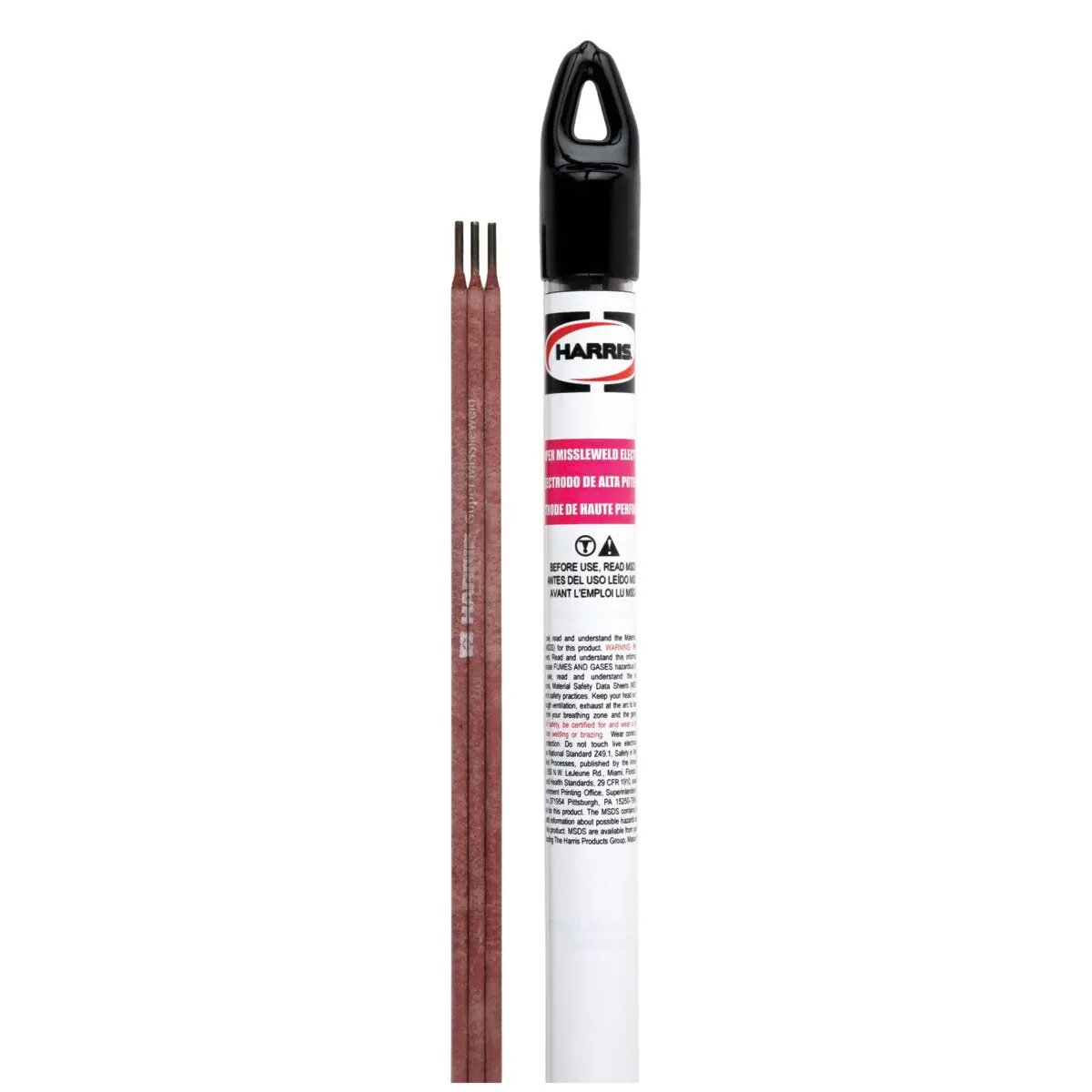

E7018 SMAW Welding Electrode

Description

7018 is a high deposition covered electrode for low and medium carbon steels. It is an efficient, iron powder, low hydrogen covered electrode with excellent mechanical properties, crack resistance and x-ray quality welds. This covered electrode offers a quiet, stable, low penetration, spatter-free arc. The moderately heavy slag is easy to remove, revealing a bead with distinct ripples. Operator appeal is a plus factor.

• E7018 mild steel covered stick (SMAW) electrode POP 1/8 x 12 in. x 4 ea. tube/box
• 7018 is a high deposition covered electrode for low and medium carbon steels. It is an efficient, iron powder, low hydrogen covered electrode with excellent mechanical properties, crack resistance and x-ray quality welds. This covered electrode offers a quiet, stable, low penetration, spatter-free arc. The moderately heavy slag is easy to remove, revealing a bead with distinct ripples. Operator appeal is a plus factor.
• High deposition electrode for low and medium carbon steels with excellent mechanical properties
• Produces crack resistant, x-ray quality welds
• Provides a quiet, stable, low penetration and spatter-free arc
• All-position welding, except vertical down
• Slag is easily removed revealing a bead with distinct ripples
• Operates with AC or DCEP polarity
• Typical applications include low alloy structures, piping, pressure vessels, boilers, heavy-duty equipment, ship building, general maintenance and fabrication
• Marked with model number on each end for easy identification after use
• Conforms to ANSI/AWS A5.1 & ASME SFA 5.1 E7018
• Conveniently packaged for point-of-purchase display
• E7018 mild steel covered electrode 1/8 x 12 in. x 4 ea. tube/box POP
• 1 Year
• 7018
• Harris
• StickSMAW
• ANSI

• Alloy Type: MildSteel
• Chemical Composition: Carbon 0.15%;Silicon 0.75%;Manganese 1.60%;Phosphorus 0.035%;Sulfur 0.035%;Nickel 0.30%;Chromium 0.20%;Vanadium 0.08%;Molybdenum 0.30%;Combined Limit 1.75% (Mn, Ni, Cr, Mo, V);Iron Remainder%
• Classification: ANSI/AWS A5.1;ASME SFA 5.1 E7018
• Diameter: 1/8 in (3.2 mm)
• Elongation: 30.0% in 2 in. (mechanical properties as welded)
• Material: Mild (Carbon) Steel
• NSF Compliant: No
• RoHS Compliant: No
• Size: 4 ea. tube
• Tensile Strength (PSI): Up to 81,000 (mechanical properties as welded)
• Typical Application: Welding low alloy structures;Piping;Pressure vessels;Boilers;Heavy-Duty equipment;Ship building;General maintenance;Fabrication
• Yield Strength (PSI): 71,000 (mechanical properties as welded)

What’s Included: E7018 mild steel covered electrode 1/8 x 12 in. x 4 ea. tube/box POP

Model Name: 7018
