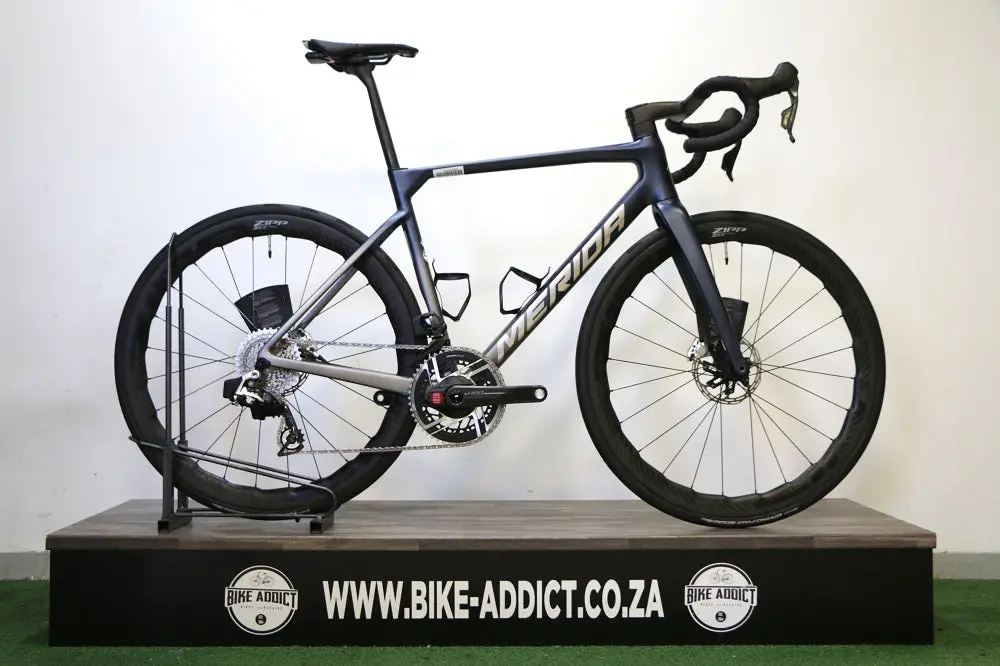

Merida Scultura 10K Disc Road Bike – 2025 Model

Description

FRAME
SCULTURA CF5 V

FORK
SCULTURA CF5 disc
material: carbon
700x30C max. wheelsize

BRAKES
Sram Red AXS
Hydraulic disc

ROTORS
Sram Paceline X Centerlock
160mm

BRAKE LEVER
Sram Red AXS

HEADSET
MERIDA TEAM SL
VP-MRBHB (OP-203 neck)

HANDLEBAR
MERIDA TEAM SL 1P INTEGRATED
material: carbon
380mm (XXS-XS-S)
400mm (M-L-XL)

HANDLEBAR STEM
MERIDA TEAM ONE-PIECE INTEGRATED
material: carbon
90 mm-3XS/XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL
incl. MERIDA SMART MOUNT

GRIP
MERIDA ROAD Expert

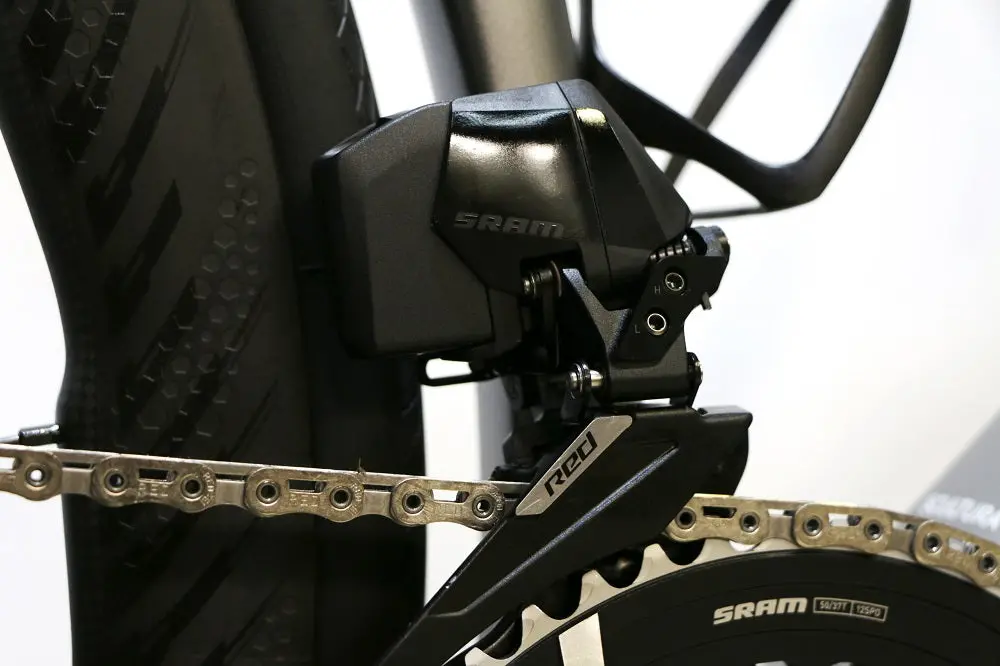

DERAILLEUR (F)
Sram Red AXS

DERAILLEUR (R)
Sram Red AXS

SHIFTERS
Sram Red AXS

SEAT POST
MERIDA TEAM SL
27.2mm diameter
15mm setback
Carbon
S-Flex

SEAT CLAMP
MERIDA EXPERT

SADDLE
Prologo Scratch M5

CHAIN
Sram Red D1 12S

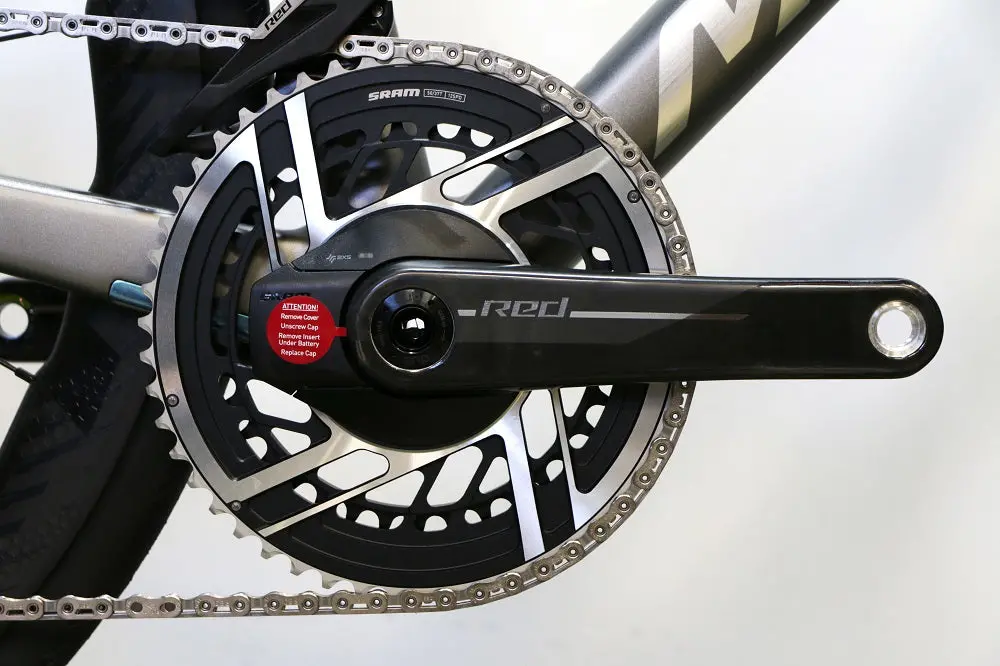

CRANK
Sram Red AXS
50-37 teeth
Power Meter
165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL

FREEWHEEL
Sram XG 1290 E1
10-36 teeth
12 speed

BOTTOM BRACKET
Sram Pressfit Dub

WHEELSET
Zipp WH-353-NSW Tubeless, 12x100mm width front hub, 12x142mm width rear hub, 25mmmm inner width, Centerlock
Sram xdr, Carbon

TYRE FRONT
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

TYRE REAR
Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready

AXLES
MERIDA EXPERT SL

APPROX. WEIGHT
7 kg

To reduce production and delivery times the supplier sometimes have to make last-minute changes to product specifications. These updates may not always be reflected in the product descriptions or images on our website.
