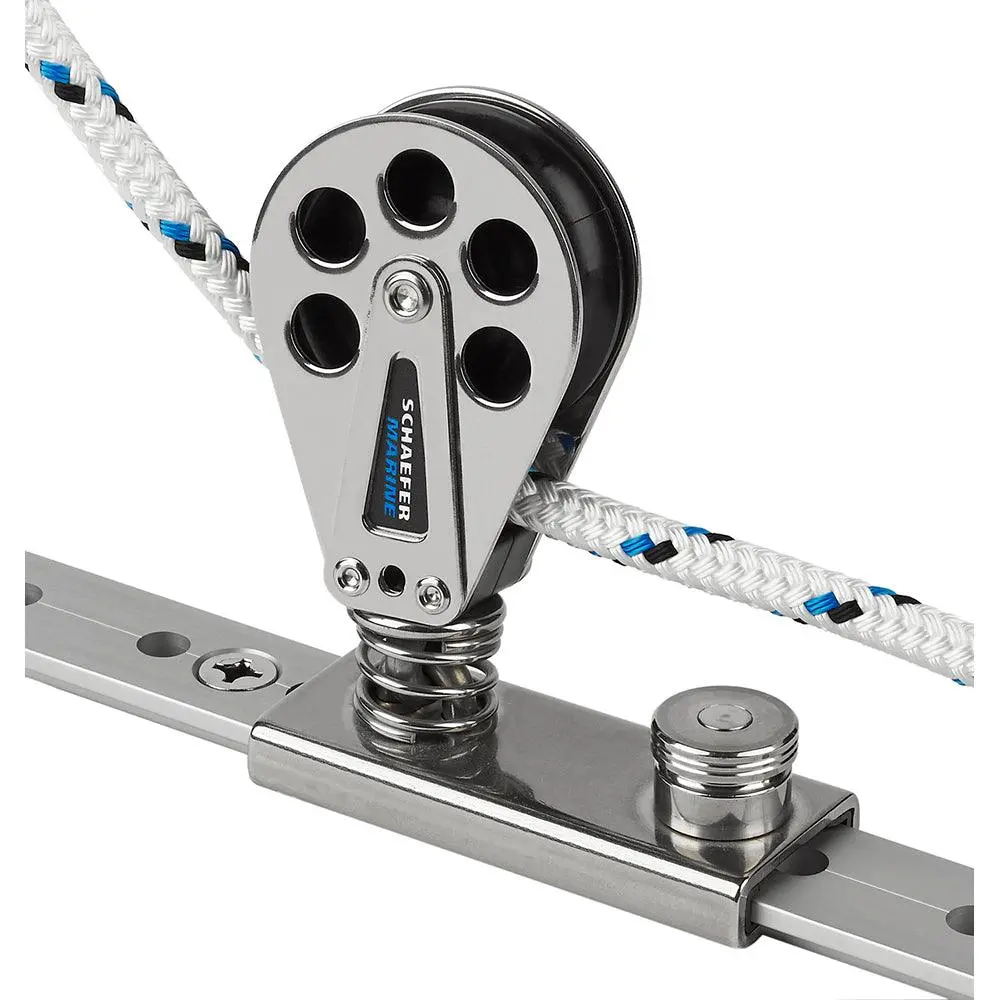

Schaefer Spring-Loaded T-Track Slider – 1.25″ Track, Lined & Corrosion-Resistant [705-92]

Description

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4″ T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

• Track Size 1-1/4″ x 3/16″ (32 mm x 5 mm)
• Max. Boat Length 33′ (10 m)
• Max. Boat Weight 12000 lbs. (5455 kg)
• Max. Sail Area 520 sq. ft. (48 m2)
• Sheave Diameter 2-3/8″ (60 mm)
• Max Line 1/2″ (12 mm)
• Length 4″ (102 mm)
• Width 1-9/16″ (39 mm)
• Height 4-15/16″ (126 mm)
• Bearing Height 2-3/8″ (67 mm)
• SWL 2250 lbs. (1020 kg)
• Weight 14 oz. (397 g)
